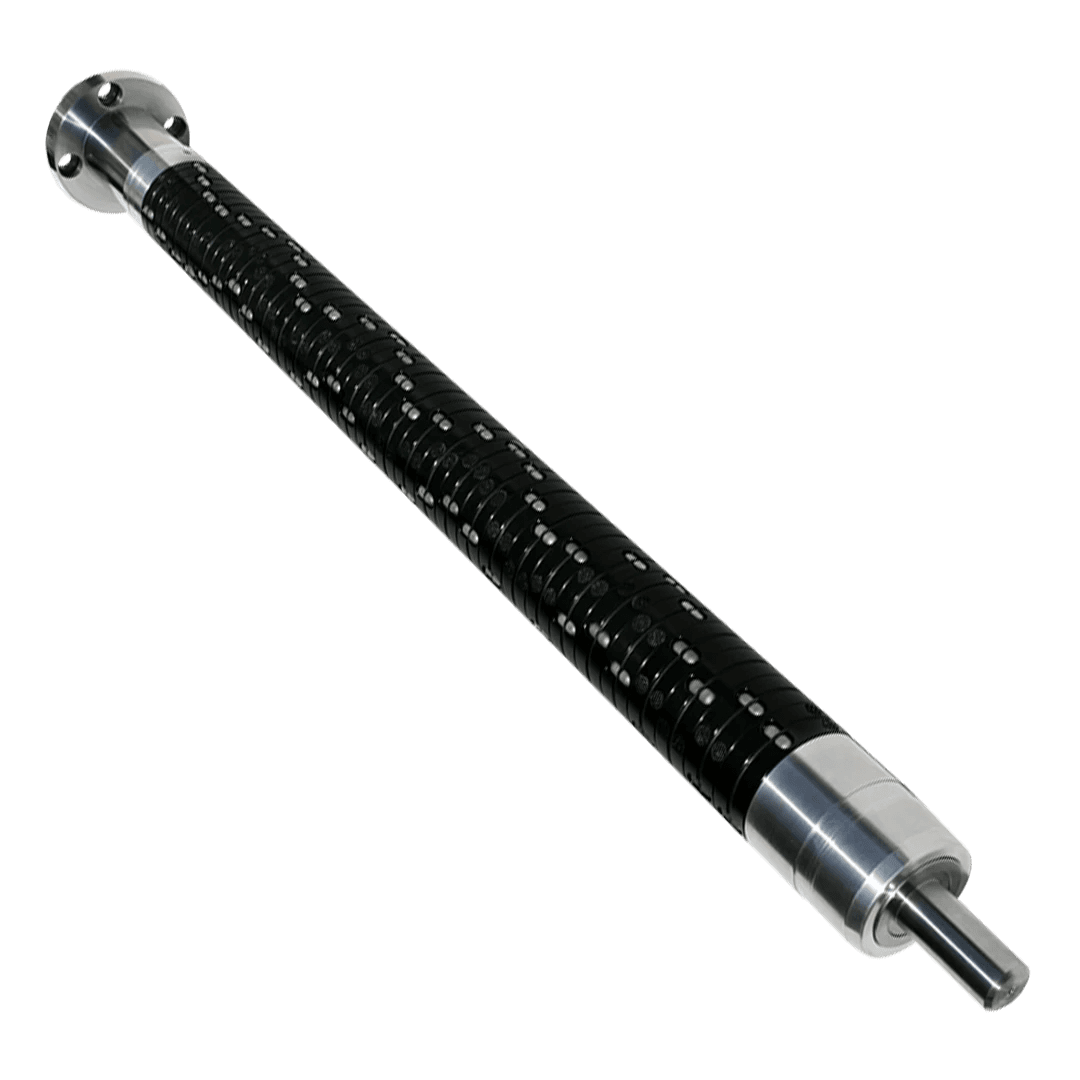

Core Shafts

Air Expanding Shaft delivers superior performance for winding & rewinding application in the widest range of roll handling process. Our Air Expanding Shaft is one of the best core gripping having widest range from heavy to light duty work. Air Expanding Shaft minimizes reel change over time. It does not lead to any harm at the core surface

Mechanical Expanding Shaft delivers superior performance for Winding & Rewinding application in the widest range of roll handling process. Mechanical Expanding Shaft which does not need air pressure as it works manually. Mechanical Expanding Shaft has widest range from heavy to medium duty work.

Cantilever Shafts are widely used for Pouching Machines, Doctoring Machines & Label Printing Machines. Cantilever Shaft has durable construction to hold the cores for the positive gripping. Cantilever Shaft are of fange mounting style and it used for light to medium duty works.

Leaf Shaft provides superior performance for winding and unwinding process in all types of converting industries. Leaf Shaft has widest range from heavy to light duty work. Leaf Shaft design prevents roll slippage during working period.

Small Diameter Expanding Shafts are widely used for Sticker, Fax Roll & Label Printing Machines, Small Diameter Expanding Shaft has durable construction to hold the cores for the positive gripping. Small Diameter Expanding Shafts are fange mounting styles and it used for light to medium duty works.

Pneumatic expanding shaft with lugs model BUTLER is primarily recommended for unwinding and winding rolls that have cores when a high torque to be transmitted and heavy working conditions is required. The body of the shaft is available in a variety of high- strength steels; the expanding lugs come in either steel with an aggressive profile or plastic depending upon core material and torque requirements.The journal ends are also available in a variety of steels and are always custom- made.Expansion is accomplished by a single inflatable tube which pushes on the expandors when air is applied.An exclusive tube protector works to substantially reduce wear and potential rubber tube leakage.Models ordered with journals bigger than 50 mm diameter can be fitted with the SVECOM quick - change air tube, which will allows you to change rubber tubes without removing the shaft from the roll or the machine.

Multi Tube Air Shaft provides superior performance for winding and unwinding process in all types of printing & packaging industries. Multi Tube Air Shaft features durable hard multi-bladder for gripping the inside diameter of any type of cores. Multi Tube Air Shaft can be run on multiple and large diameter cores. It gives and equalizes tension during working time.

Slitter Knife Shaft is manufactured from high quality alloy steel. This shaft body is hard chrome plated and precision ground to match the inside diameter of your current anvils. Slitter Knife Shafts are available in custom diameter, length. This shaft is dynamically balanced and precision ground & chromed to the most precise tolerances. Outer body holds the anvils or knives

Heavy Duty Mill Shaft is manufactured for use in production of Jumbo Rolls Tissue and Paper Industry & Steel Industry. Heavy Duty Mill Shaft is manufactured in two types – Lugs Type or Multi Tube Type. Heavy Duty Mill Shafts are available in custom diameter & length. This shaft is dynamically balanced and precision ground & chromed to the most precise tolerance.

Cantiliver Shafts are widely used for pouching machines, doctoring machines, & label printing machines. Cantiliver Shafts have a durable construction to hold the cores for positive gripping. They are in fange mounting styles and are used for light to medium duty works.

Button Air Expanding Shaft is one of the most popular and requested design shaft. It is suitable for a full range of converting and web production operation. Button Air Expanding Shaft rugged construction and design is available for any diameter or length, in steel or aluminum with special designs available for heavy duty and light weight applications. We manufacture to your specifcations to suit your equipment, including standard or varied button spacing, cantilevered or custom designed.

Carbon fiber pneumatic expanding shaft with lugs model 638 PK is recommended for unwinding and winding of coils with cores. is recommended for unwinding and winding of coils with cores. The shaft body is made of high resistance carbon fiber, fabricated through filament winding technology and, on request, it can be protected externally by a steel casing. This shaft is extremely light compared to traditional solutions and it allows better productivity because: It can work at higher speed It can be managed by a single operator without assistance It does not require the use of lifting systems for its insertion into the coil and for extraction from it The expansion is obtained thanks to a single rubber tube which, once inflated, pushes the lugs outwards and allows the locking of the cores. The protection system ensures a longer life of the pipe, reducing the possibility of breakage. The journal ends are always made according to the customer’s drawing. On models with side journal ends with a diameter bigger than 50mm, it is possible to provide a system for the quick disassembly of the rubber pipe in the event of breakage, allowing to repair the shaft in minimum time.
